The heart of Reframe are databases which are called data frames. In this section, we will make sure you understand how to work with them.

At the end of this chapter you will know

🎯 how to create and set up your own data frame
🎯 how to fill in your data
🎯 how to review your data in the table view
🎯 how to connect several dataframes with each other

4.1 Introduction to data frames: Rows and columns #

Before we explain how to create your own data frame, let’s first look at how data frames are usually set up in Reframe. This will help you understand the basics.

If you want to start creating your own data frame right away, jump to section 4.2.

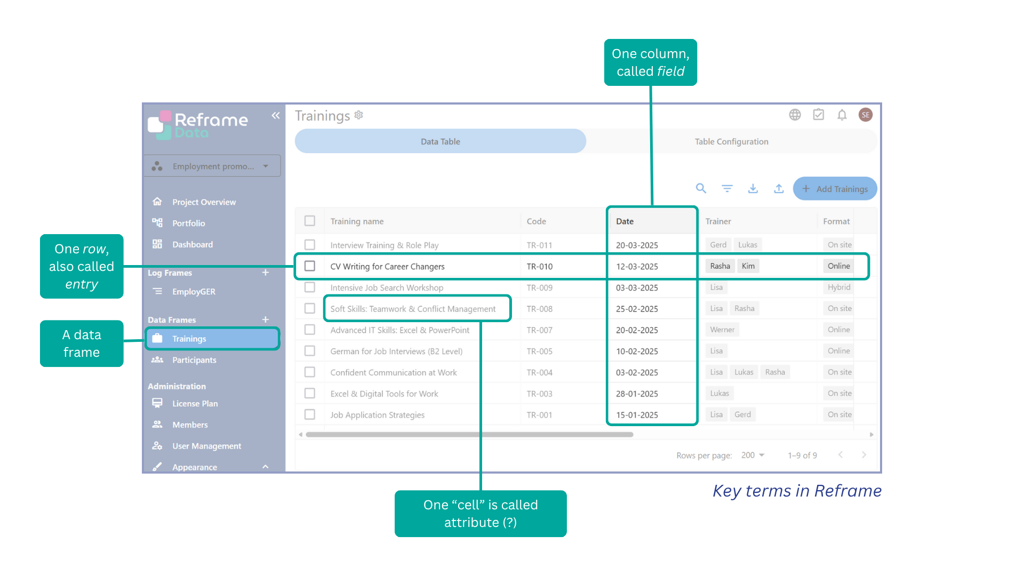

Like any other table, data frames in Reframe consist of rows and columns. In Reframe, columns are called fields. Rows are often also referred to as entries.

Fields define the overall structure of the table – they define what kind of attributes are stored for each data entry and in which data format they will be stored. Rows are the actual data entries and contain information for each entity that is stored.

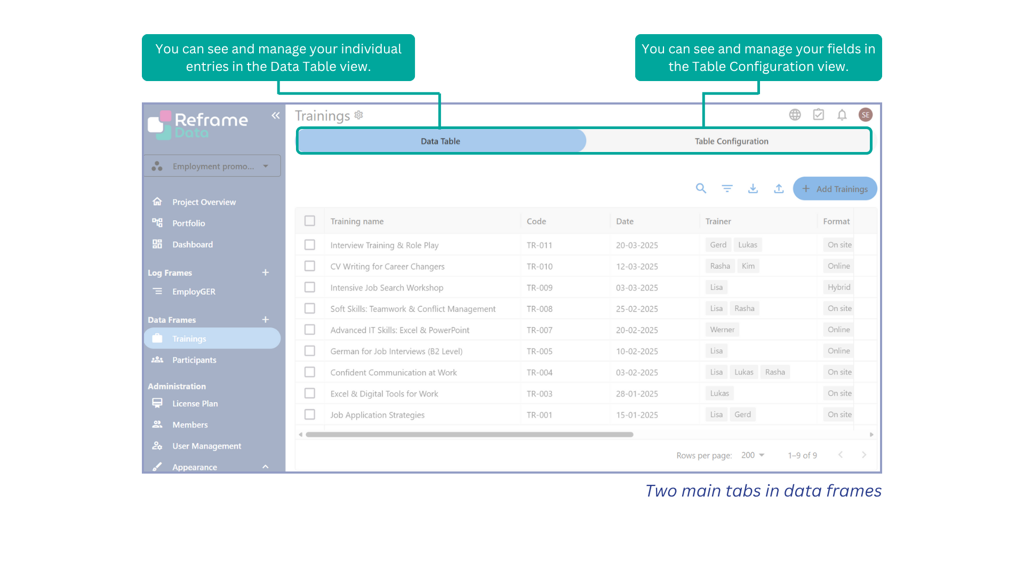

Whenever you open a data frame in Reframe, you will see that there are at least two tabs at the top: The Data Table tab and the Table Configuration tab. The Data Table tab displays all your data, while the Table Configuration tab enables you to customise your table’s structure.

4.2 Table configuration #

Whenever you create a new data frame, you will start from an empty table that has no entries and only one field: the mandatory “Name” field.

→ To add more fields, you will need to navigate to the Table Configuration tab and click on “Add”. Then you need to choose the field type that you need.

[insert GIF adding a field type]

4.2.1 Field types #

Each field that you create will belong to a specific field type that you need to choose first.

Reframe currently offers 17 different field types. We will present these briefly in the table below. If you need more information on a particular field type, please follow the relevant link.

Icon	Field type	What it does	Best for
Basic field types
	Text	Single-line text	Titles, labels, short notes
	Long text	Multi-line text	Descriptions, comments, logs
	Number	Numeric value	Counts, measurements
	Currency	Numeric value formatted as money	Budgets, costs, prices
	Percentage	Numeric value presented as percentage	KPIs, completion rates
	Date	Calendar date	Deadlines, dates
	Choice	Single- or multi-select list	Categories, statusesSingle-select: Users can choose one option.Multi-select: Users can choose one or more options.
	Yes/No	Yes/No field	Single-select with two fixed options
	File	General file upload	PDFs, docs, attachments
	Photo	Image upload	Visual documentation, images
	Hyperlink	URL link field	External references, websites
	Geo	Stores geographic location	Addresses, site locationsMay be displayed on a map
Fields that link existing content with each otherPlease note that there is a whole section on connecting data frames. If you are unsure about these fields, consult this section first.
	Connection	Connects the DataFrame with other existing dataframes	Connecting existing information with each other & avoiding to collect the same data twice in different places
	Incoming connection	Displays information	Explain here
	Lookup	Displays data from linked dataframes	Ensuring that referenced data updates automatically once it is changed in another DataFrame
	Indicator	Links to existing indicators in logframes	Showing how work affects metrics
	Project link	Links to existing projects	Connecting items to projects, good for cross-project referencing
	User	Field assigning one or more users	Ownership, responsibility

4.2.2 Field properties #

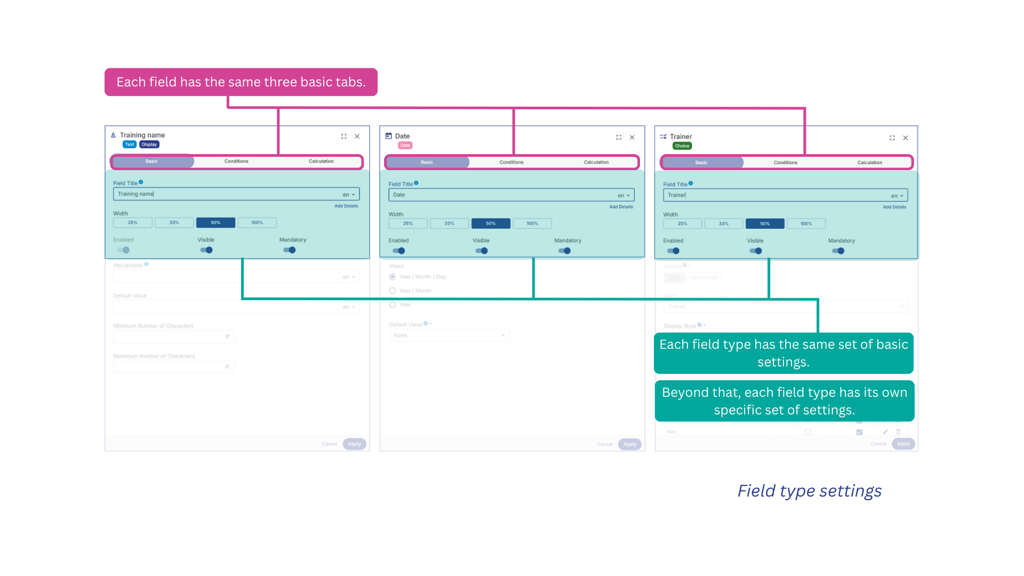

Every field type has its own set of settings. But most fields share some basic settings which we will present here.

For each field, you can find three tabs that help you to set up

• Basic
  • The essential information about your field, such as its name and fundamental settings.
  • Example: Name your field “Email Address” and choose whether it’s mandatory or optional.
• Conditions
  • Define when or for whom the field will appear, based on certain criteria.
  • Example: Show the “Company Name” field only if the user selected “Business Owner” in a previous question.
• Calculations
  • Set up automatic calculations for your field so it can display results dynamically.
  • Example: Create a field called “Total Earnings” that automatically sums the values of “Product Price” and “Amount sold”.

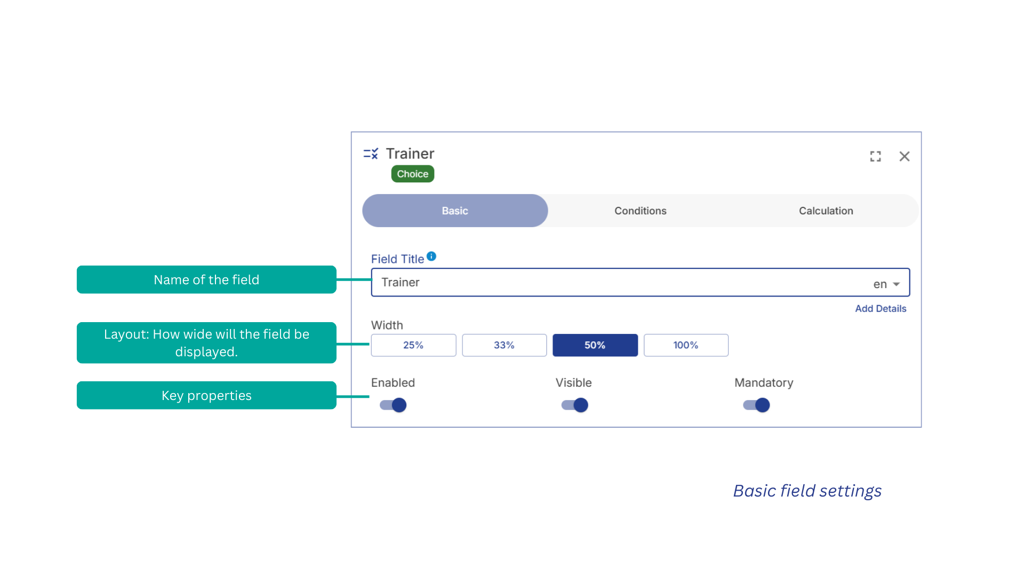

The Basic tab will help you set up the following dimensions for your question

Field Title
→ What the field is called. This is the label users will see.

Width
→ How wide the field will appear on the page (e.g. 25%, 50%, 100%).

Key properties
→ Basic settings: Enabled = Turn the field on/off; Visible = Show or hide it; Mandatory = Make it required or optional.

We will discuss the Conditions and Calculations tabs in separate chapters. Please refer to these chapters directly if you want to learn more. Enter link.

4.3 Entering data #

Once you have set up your table, it is time to fill it with data. Generally, there are three basic ways in which you (or your users) may enter data into your DataFrame:

• Manually: You enter your data manually by creating a new entry and filling in the form one by one.
• Via import: You enter your data into an Excel file that is then imported.
• Via synchronization: You connect your DataFrame to an external source from which you will source your data.

4.3.1 Entering data manually #

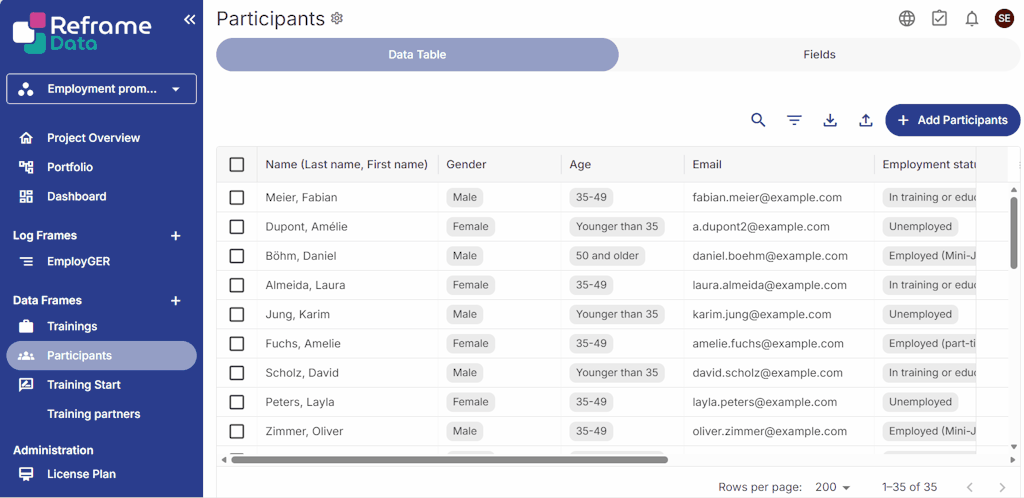

If you want to enter data manually, you will always find a button at the top right of any DataFrame. This opens an interface called a drawer, where you can enter your information one by one.

4.3.2 Entering data via import #

If you would prefer to collect your data externally, you can download an Excel template to fill in and then import back into Reframe.

Step 1: Downloading the Excel template

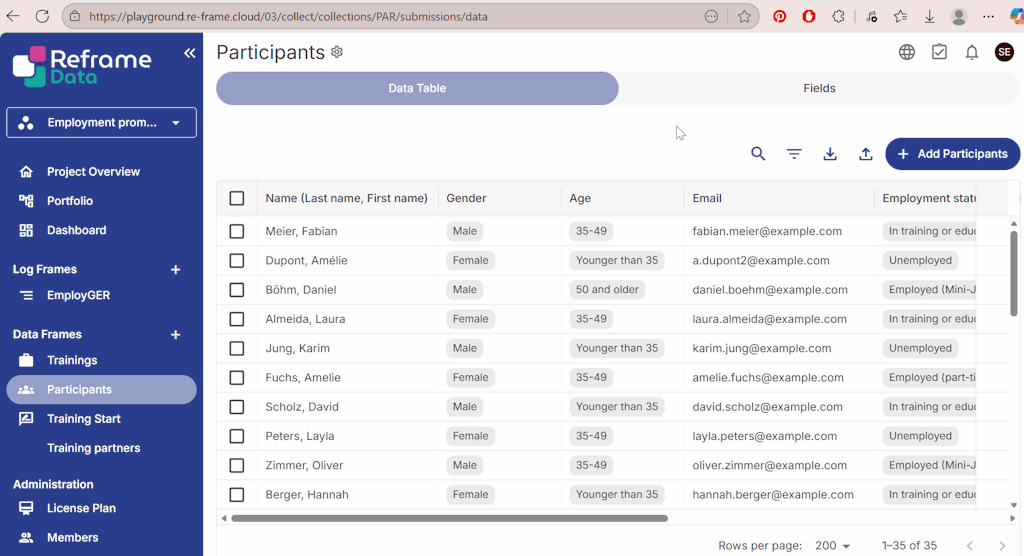

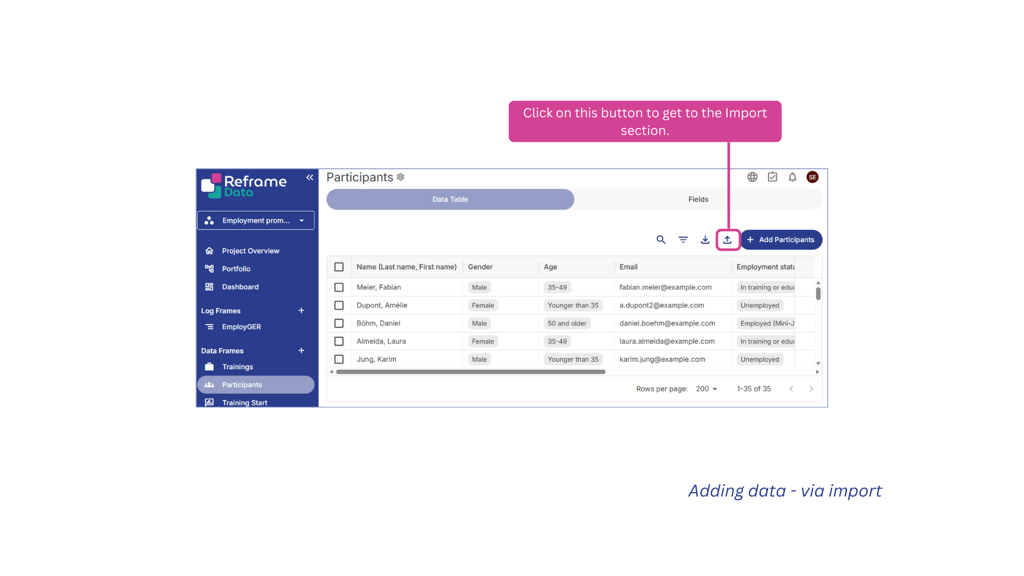

→ To do so, click on the ‘Import’ button and download the Excel template to complete it.

→ Watch all steps below:

You will notice that the Excel file has the exact same fields (columns) as your DataFrame. The response options for multi-select fields will also be present.

Please note that Excel does not natively support multi-select fields. Therefore, any multi-select fields in your DataFrame will be converted to single-select fields in Excel.

Step 2: Filling in the Excel file

Step 3: Importing data

Once you have completed the Excel file, you can import it into your data frame in a few simple steps.

→ To start the import process, go to the ‘Import’ section again and either drag and drop your file into the ‘Upload’ section or open it manually by clicking on the section.

4.3.3 Entering data via synchronization
